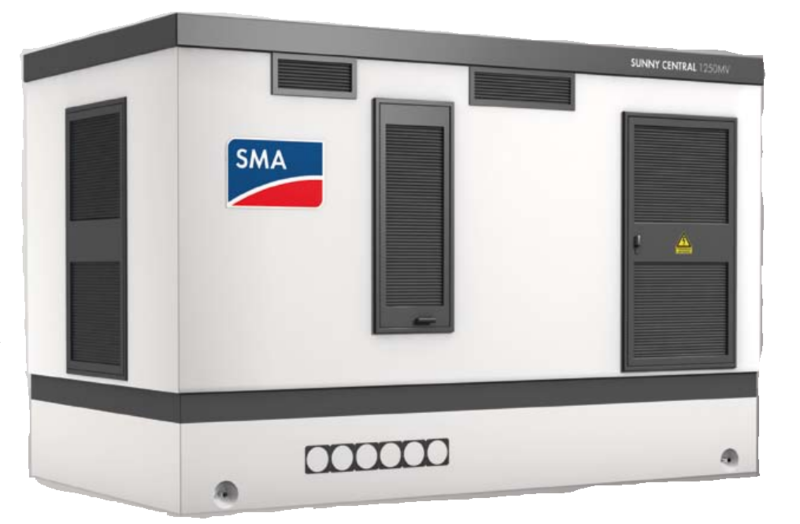

SMA SUNNY CENTRAL SC-800MV-11 central inverter
For even more power: Two high-performance SMA SUNNY CENTRAL HE SMAs are part of a medium-voltage station (MV) that directly supplies a common medium-voltage transformer. In this way, for example, starting from two SMA SUNNY CENTRAL 630HE inverters, a 1250 MV SMA SUNNY CENTRAL station is used. The advantage: By eliminating the low-voltage transformer, higher efficiency is achieved and at the same time the inverter costs are reduced. SMA SUNNY CENTRAL MV also offers the best prospects for the future: it meets all the requirements of the guidelines for network management. A safe investment that will bear fruit in the future
For even more power: Two high-performance SMA SUNNY CENTRAL HE SMAs are part of a medium-voltage station (MV) that directly supplies a common medium-voltage transformer. In this way, for example, starting from two SMA SUNNY CENTRAL 630HE inverters, a 1250 MV SMA SUNNY CENTRAL station is used. The advantage: By eliminating the low-voltage transformer, higher efficiency is achieved and at the same time the inverter costs are reduced. SMA SUNNY CENTRAL MV also offers the best prospects for the future: it meets all the requirements of the guidelines for network management. A safe investment that will bear fruit in the future
| Product Data Euro efficiency in % | 97 |
|---|---|
| Product Data Display | yes |
| Product Data Transformer | yes |
| Product Data Height (mm) | 3170 |
| Product Data Length (mm) | 2440 |
| Product Data Maximum input current (A) | 1986 |
| Product Data Nominal AC power (W) | 800000 |
| Product Data Amount DC inputs | 32 |
| Product Data Amount MPP Tracker | 1 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP 54 |
| Product Data DC voltage range (V) from | 450 |
| Product Data DC voltage range (V) until | 1000 |
| Product Data Standard manufacturer warranty (years (opt)) | 5 |
| Product Data Weight (kg net) | 47.23 |
| Product Data Width (mm) | 11500 |
| Product Data C ° working temperature range from | -20 |
| Product Data C ° working temperature range until | 45 |
* 24-month warranty on new parts, product-overhauling repairs and product-overhauled spare and replacement parts. We not only carry out our preventive measures for product-overhauling repairs, exchange and spare parts sales, but also extensively test each electronic assembly for function and load. In addition, we use original and safety-compliant components and thus guarantee the safety of the modules used in accordance with the standards of the Machinery Directive 2006/42 / EC.
** There is no guarantee for our "Cleaning & Inspection" service type.
