SC-800CP-XT

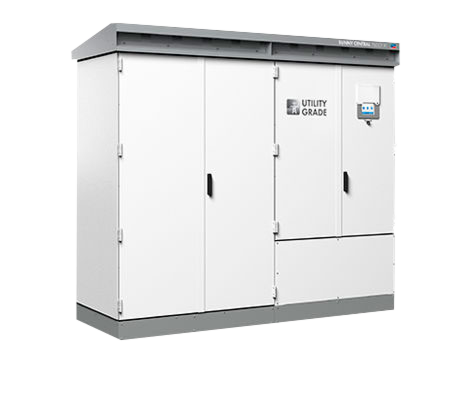

SMA SUNNY CENTRAL SC-800CP-XT central inverter
Similar to illustration or symbol photo
Repair service at power unit level
BVS Electronics: Certified Quality
Repairs in accordance with Machinery Directive 2006/42/EC
More BVS Advantages
You benefit from:
- BVS REPAIR / PRODUCT OVERHAUL • Comprehensive product-repair overhauls • Repairs and replacements for discontinued assemblies • Preventive replacement of all components identified as weak points or wear parts • Optional expedited repairs • Preventive overhaul packages (ECOFIT) • Cleaning and washing of each assembly before repair • Functional and stress tests • Use of components approved by the manufacturer/legislator
- BVS SERVICE • 24/7 hotline • Long-term supply analyses and concepts • Very attractive price levels • Free shipping up to 30 kg • Free technical hotline • On-site service and configuration
- BVS AVAILABILITY • Over 1,000,000 assemblies available 24/7 • 24/7 courier service • Multiple shipping options • Own HMI / IPC • Express air freight
- BVS QUALITY • 24 months warranty* • Extensive technical expertise and state-of-the-art diagnostic systems • Comprehensive documentation">All advantages in the tooltip when you hover your mouse over here.
Your BVS Electronics Advantages
No longer needed assemblies? We turn them into cash!
We purchase across manufacturers – whether defective or fully functional. Fast, straightforward, and at fair prices.
Request a quote now!
📞 Phone: +49 6181 95404-207
✉️ Email: ankauf@bvs-electronics.com
SMA SUNNY CENTRAL SC-800CP-XT central inverter
For even more power: With its expanded functions, the new SMA SUNNY CENTRAL CP XT series is now even more powerful. At the same time, the specific price is reduced and maximum yields are achieved with less system effort. As is the case for full nominal power in continuous operation up to 50 ° C the SMA SUNNY CENTRAL CP XT is also optimized for cold temperatures down to −40 ° C. The inverter includes all grid management functions and is prepared for Q at Night. The tailor-made computer platform is used for optimal monitoring and control.
Full rated power in continuous operation up to 50 ° C ambient temperature
Direct installation in the field and optimized for extreme climatic conditions from −40 ° C to 62 ° C
Active temperature management through OptiCool ™ flexible
Wide DC input voltage range for flexible use of different module configurations
Perfectly adapted to the temperature-dependent behavior of PV generators Versatile
All network management functions included, prepared for "Q at Night" including pure reactive power operation
Tailored computer platform for optimal monitoring and control of the inverters
Up to 1 megawatt system output as standard
Greatly reduced specific price due to more performance
Maximum yields with low system overhead
For even more power: With its expanded functions, the new SMA SUNNY CENTRAL CP XT series is now even more powerful. At the same time, the specific price is reduced and maximum yields are achieved with less system effort. As is the case for full nominal power in continuous operation up to 50 ° C the SMA SUNNY CENTRAL CP XT is also optimized for cold temperatures down to −40 ° C. The inverter includes all grid management functions and is prepared for Q at Night. The tailor-made computer platform is used for optimal monitoring and control.
Full rated power in continuous operation up to 50 ° C ambient temperature
Direct installation in the field and optimized for extreme climatic conditions from −40 ° C to 62 ° C
Active temperature management through OptiCool ™ flexible
Wide DC input voltage range for flexible use of different module configurations
Perfectly adapted to the temperature-dependent behavior of PV generators Versatile
All network management functions included, prepared for "Q at Night" including pure reactive power operation
Tailored computer platform for optimal monitoring and control of the inverters
Up to 1 megawatt system output as standard
Greatly reduced specific price due to more performance
Maximum yields with low system overhead
| Product Data AC Connection | Ring terminal lug |
|---|---|
| Product Data DC Connection | Ring terminal lug |
| Product Data Euro efficiency in % | 98 |
| Product Data Display | yes |
| Product Data Transformer | yes |
| Product Data Height (mm) | 2272 |
| Product Data Interfaces | Ethernet |
| Product Data Length (mm) | 956 |
| Product Data Maximum input current (A) | 1400 |
| Product Data Nominal AC power (W) | 800000 |
| Product Data Amount DC inputs | 9 |
| Product Data Amount MPP Tracker | 1 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP 54 |
| Product Data DC voltage range (V) from | 530 |
| Product Data DC voltage range (V) until | 1000 |
| Product Data Standard manufacturer warranty (years (opt)) | 5 |
| Product Data Weight (kg net) | 1.9 |
| Product Data Width (mm) | 2562 |
| Product Data C ° working temperature range from | -25 |
| Product Data C ° working temperature range until | 60 |
* 24-month warranty on new parts, product-overhauling repairs and product-overhauled spare and replacement parts. We not only carry out our preventive measures for product-overhauling repairs, exchange and spare parts sales, but also extensively test each electronic assembly for function and load. In addition, we use original and safety-compliant components and thus guarantee the safety of the modules used in accordance with the standards of the Machinery Directive 2006/42 / EC.
** There is no guarantee for our "Cleaning & Inspection" service type.
