SC-760CP

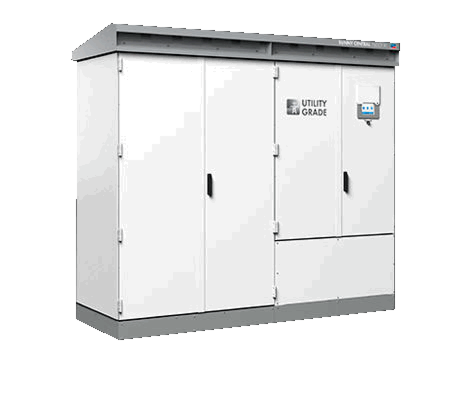

SMA SUNNY CENTRAL SC-760CP central inverter
Similar to illustration or symbol photo
Repair service at power unit level
BVS Electronics: Certified Quality
Repairs in accordance with Machinery Directive 2006/42/EC
More BVS Advantages
You benefit from:
- BVS REPAIR / PRODUCT OVERHAUL • Comprehensive product-repair overhauls • Repairs and replacements for discontinued assemblies • Preventive replacement of all components identified as weak points or wear parts • Optional expedited repairs • Preventive overhaul packages (ECOFIT) • Cleaning and washing of each assembly before repair • Functional and stress tests • Use of components approved by the manufacturer/legislator
- BVS SERVICE • 24/7 hotline • Long-term supply analyses and concepts • Very attractive price levels • Free shipping up to 30 kg • Free technical hotline • On-site service and configuration
- BVS AVAILABILITY • Over 1,000,000 assemblies available 24/7 • 24/7 courier service • Multiple shipping options • Own HMI / IPC • Express air freight
- BVS QUALITY • 24 months warranty* • Extensive technical expertise and state-of-the-art diagnostic systems • Comprehensive documentation">All advantages in the tooltip when you hover your mouse over here.
Your BVS Electronics Advantages
No longer needed assemblies? We turn them into cash!
We purchase across manufacturers – whether defective or fully functional. Fast, straightforward, and at fair prices.
Request a quote now!
📞 Phone: +49 6181 95404-207
✉️ Email: ankauf@bvs-electronics.com
SMA SUNNY CENTRAL SC-760CP central inverter
With the SMA SUNNY CENTRAL CP series and Optiprotect, up to 1600 module strings know and distinguish centrally without the perception of communication cabling in the field. The self-learning monitoring system significantly simplifies commissioning. 32. With their compact and fireproof serenes, the inverter rights can be loaded, easily transported and seen belong to set up.
• Full nominal power up to 50 ° C ambient temperature
• 10% more power in continuous operation up to 25 ° C ambient temperature
• Configurable DC voltage range
• Optional: Extended input voltage range up to 1,100 Vsafe
• Simple and safe installation thanks to separate connection area
• Comprehensive network management functions Economical
• Optiprotect for maximum system availability
• Direct use outdoors thanks to the outdoor housing
With the SMA SUNNY CENTRAL CP series and Optiprotect, up to 1600 module strings know and distinguish centrally without the perception of communication cabling in the field. The self-learning monitoring system significantly simplifies commissioning. 32. With their compact and fireproof serenes, the inverter rights can be loaded, easily transported and seen belong to set up.
• Full nominal power up to 50 ° C ambient temperature
• 10% more power in continuous operation up to 25 ° C ambient temperature
• Configurable DC voltage range
• Optional: Extended input voltage range up to 1,100 Vsafe
• Simple and safe installation thanks to separate connection area
• Comprehensive network management functions Economical
• Optiprotect for maximum system availability
• Direct use outdoors thanks to the outdoor housing
| Product Data AC Connection | Ring terminal lug |
|---|---|
| Product Data DC Connection | Ring cable lug / cage clamp (Optiprotect) |
| Product Data Euro efficiency in % | 98 |
| Product Data Display | no |
| Product Data Transformer | yes |
| Product Data Height (mm) | 2279 |
| Product Data Interfaces | Ethernet (optical fiber optional), Modbus |
| Product Data Length (mm) | 956 |
| Product Data Maximum input current (A) | 1400 |
| Product Data Nominal AC power (W) | 760000 |
| Product Data Amount DC inputs | 10 |
| Product Data Amount MPP Tracker | 1 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP54 / IP23 |
| Product Data DC voltage range (V) from | 545 |
| Product Data DC voltage range (V) until | 1000 |
| Product Data Weight (kg net) | 1.8 |
| Product Data Width (mm) | 2562 |
| Product Data C ° working temperature range from | -25 |
| Product Data C ° working temperature range until | 50 |
* 24-month warranty on new parts, product-overhauling repairs and product-overhauled spare and replacement parts. We not only carry out our preventive measures for product-overhauling repairs, exchange and spare parts sales, but also extensively test each electronic assembly for function and load. In addition, we use original and safety-compliant components and thus guarantee the safety of the modules used in accordance with the standards of the Machinery Directive 2006/42 / EC.
** There is no guarantee for our "Cleaning & Inspection" service type.
