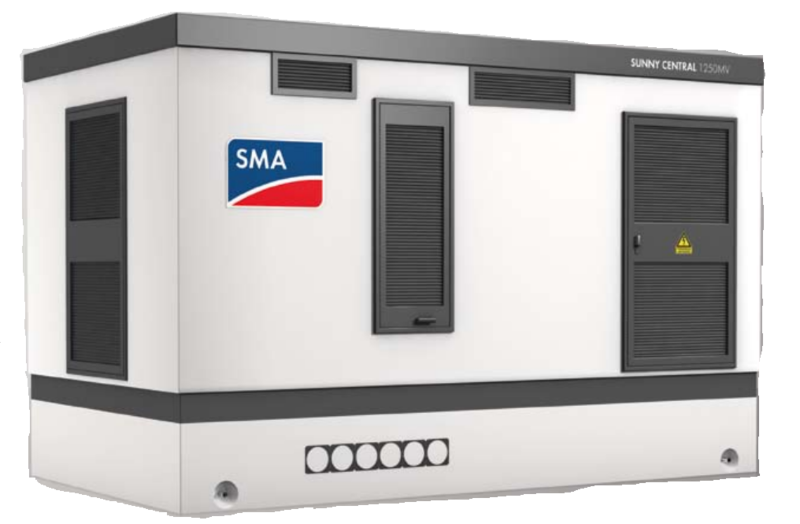

SMA SUNNY CENTRAL SC-630MV-11 central inverter
The station has it all: Equipped with an SMA central inverter from the new HE family and a medium-voltage transformer, the SMA SUNNY CENTRAL MV feeds directly into the medium-voltage network. The advantage: By doing away with the low-voltage transformer, the system operator achieves higher yields while at the same time having fewer inverters The SMA SUNNY CENTRAL MV is delivered "turnkey" as a compact concrete station. On top of that, the SMA SUNNY CENTRAL MV actively participates in the network management. It fulfills all requirements of the German medium-voltage directive that will apply from July 2010.
Medium voltage switchgear for the flexible construction of large solar parks
AC transfer station with measurement
Medium voltage transformers for other mains voltages (deviating from 20 kV)
Complete with medium voltage transformer and concrete station for outdoor use
Without a low-voltage transformer: higher system efficiency through direct connection to the medium-voltage network
The station has it all: Equipped with an SMA central inverter from the new HE family and a medium-voltage transformer, the SMA SUNNY CENTRAL MV feeds directly into the medium-voltage network. The advantage: By doing away with the low-voltage transformer, the system operator achieves higher yields while at the same time having fewer inverters The SMA SUNNY CENTRAL MV is delivered "turnkey" as a compact concrete station. On top of that, the SMA SUNNY CENTRAL MV actively participates in the network management. It fulfills all requirements of the German medium-voltage directive that will apply from July 2010.
Medium voltage switchgear for the flexible construction of large solar parks
AC transfer station with measurement
Medium voltage transformers for other mains voltages (deviating from 20 kV)
Complete with medium voltage transformer and concrete station for outdoor use
Without a low-voltage transformer: higher system efficiency through direct connection to the medium-voltage network
| Product Data Euro efficiency in % | 97 |
|---|---|
| Product Data Display | no |
| Product Data Transformer | yes |
| Product Data Height (mm) | 3600 |
| Product Data Length (mm) | 2500 |
| Product Data Maximum input current (A) | 1422 |
| Product Data Nominal AC power (W) | 600000 |
| Product Data Amount DC inputs | 16 |
| Product Data Amount MPP Tracker | 1 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP 54 |
| Product Data DC voltage range (V) from | 450 |
| Product Data DC voltage range (V) until | 1000 |
| Product Data Standard manufacturer warranty (years (opt)) | 5 |
| Product Data Weight (kg net) | 30 |
| Product Data Width (mm) | 5300 |
| Product Data C ° working temperature range from | -25 |
| Product Data C ° working temperature range until | 45 |
