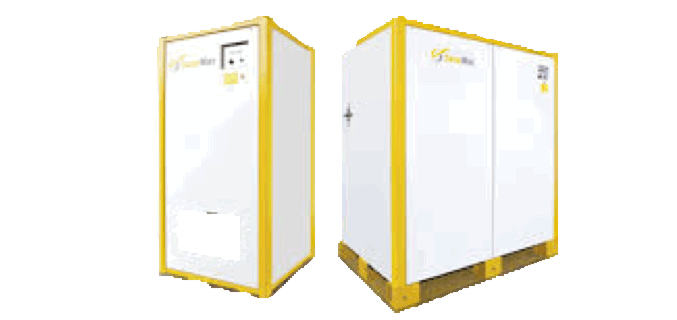

SolarMax 100C central inverter
Similar to illustration or symbol photo
BVS Electronics: Certified Quality
Repairs in accordance with Machinery Directive 2006/42/EC
More BVS Advantages
You benefit from:
- BVS REPAIR / PRODUCT OVERHAUL • Comprehensive product-repair overhauls • Repairs and replacements for discontinued assemblies • Preventive replacement of all components identified as weak points or wear parts • Optional expedited repairs • Preventive overhaul packages (ECOFIT) • Cleaning and washing of each assembly before repair • Functional and stress tests • Use of components approved by the manufacturer/legislator
- BVS SERVICE • 24/7 hotline • Long-term supply analyses and concepts • Very attractive price levels • Free shipping up to 30 kg • Free technical hotline • On-site service and configuration
- BVS AVAILABILITY • Over 1,000,000 assemblies available 24/7 • 24/7 courier service • Multiple shipping options • Own HMI / IPC • Express air freight
- BVS QUALITY • 24 months warranty* • Extensive technical expertise and state-of-the-art diagnostic systems • Comprehensive documentation">All advantages in the tooltip when you hover your mouse over here.
Your BVS Electronics Advantages
No longer needed assemblies? We turn them into cash!
We purchase across manufacturers – whether defective or fully functional. Fast, straightforward, and at fair prices.
Request a quote now!
📞 Phone: +49 6181 95404-207
✉️ Email: ankauf@bvs-electronics.com
SolarMax 100C central inverter
Central inverter
compact PWM sine wave inverter
maximum efficiency
MPP efficiency of over 99%
digital signal processor control (DSP)
low weight and space-saving design
suitable for unheated location
Equipped with RS232 / RS485 interface as standard
MaxControl option for automatic alarms, device monitoring and yield data evaluation
Central inverter
compact PWM sine wave inverter
maximum efficiency
MPP efficiency of over 99%
digital signal processor control (DSP)
low weight and space-saving design
suitable for unheated location
Equipped with RS232 / RS485 interface as standard
MaxControl option for automatic alarms, device monitoring and yield data evaluation
| Product Data AC Connection | 6 x screw terminals 35 mm² |
|---|---|
| Product Data DC Connection | 3 x screw terminals 35 mm² |
| Product Data Euro efficiency in % | 94 |
| Product Data Display | 2-line LC display with background lighting |
| Product Data Transformer | PWM (IGBT) with transformer |
| Product Data Height (mm) | 800 |
| Product Data Interfaces | Integrated RS232 / RS485 interface |
| Product Data Length (mm) | 1300 |
| Product Data Maximum input current (A) | 220 |
| Product Data Nominal AC power (W) | 100000 |
| Product Data Amount DC inputs | 2 |
| Product Data Amount MPP Tracker | 2 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP 20 |
| Product Data DC voltage range (V) from | 430 |
| Product Data DC voltage range (V) until | 900 |
| Product Data Standard manufacturer warranty (years (opt)) | 2 (20) |
| Product Data Weight (kg net) | 935 |
| Product Data Width (mm) | 1200 |
| Product Data C ° working temperature range from | -20 |
| Product Data C ° working temperature range until | 60 |
