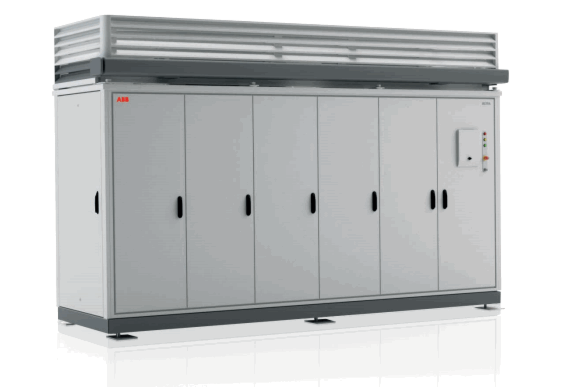

ABB Aurora Power-One ULTRA-1400.0-TL central inverter
ABB`s Ultra, the inverter for large solar systems and parks with an efficiency of up to 98.7 percent, enables optimal energy yield under different operating conditions thanks to its high-speed MPPT's (Maximum Power Point Tracking).
The largest solar inverter in the ABB product range, the new Ultra 1.4MW, was developed for large solar plants and parks. This large inverter system significantly reduces cabling and commissioning work on site thanks to its separate DC and AC distribution.
Up to four independent MPPT input channels offer maximum flexibility and energy yields. This liquid-cooled, high-performance system is the largest solar inverter on the market. The compact housing offers maximum performance with a small footprint. The housing enables outdoor use in any weather condition.
Highlights
• Maximum input voltage up to 1100 Vdc, flexible design and reduced DC distribution losses in large solar systems
• Reduced susceptibility to individual failures
• If one inverter module fails, there is a loss of a maximum of 350kW
• Integrated DC and AC distribution with protective device. No other accessories required for installation
• Direct transformerless conversion to 690 Vac output voltage reduces the costs for AC distribution
• Extended MPPT input voltage range 2 ABB solar inverters
Additional highlights
• Passive liquid cooling with completely separate internal areas, which enables a five-year maintenance cycle
• Easy installation and maintenance
• Removable inverter modules on the front and easy access to all important parts
• Two independent RS-485 communication interfaces for inverters and intelligent string combiner monitoring
• BDEW and FERC 661 compliant
ABB`s Ultra, the inverter for large solar systems and parks with an efficiency of up to 98.7 percent, enables optimal energy yield under different operating conditions thanks to its high-speed MPPT's (Maximum Power Point Tracking).
The largest solar inverter in the ABB product range, the new Ultra 1.4MW, was developed for large solar plants and parks. This large inverter system significantly reduces cabling and commissioning work on site thanks to its separate DC and AC distribution.
Up to four independent MPPT input channels offer maximum flexibility and energy yields. This liquid-cooled, high-performance system is the largest solar inverter on the market. The compact housing offers maximum performance with a small footprint. The housing enables outdoor use in any weather condition.
Highlights
• Maximum input voltage up to 1100 Vdc, flexible design and reduced DC distribution losses in large solar systems
• Reduced susceptibility to individual failures
• If one inverter module fails, there is a loss of a maximum of 350kW
• Integrated DC and AC distribution with protective device. No other accessories required for installation
• Direct transformerless conversion to 690 Vac output voltage reduces the costs for AC distribution
• Extended MPPT input voltage range 2 ABB solar inverters
Additional highlights
• Passive liquid cooling with completely separate internal areas, which enables a five-year maintenance cycle
• Easy installation and maintenance
• Removable inverter modules on the front and easy access to all important parts
• Two independent RS-485 communication interfaces for inverters and intelligent string combiner monitoring
• BDEW and FERC 661 compliant
| Product Data AC Connection | 6 x 240 mm (M12) |
|---|---|
| Product Data DC Connection | 40 x 50mm2 ... 240mm2 (M12) |
| Product Data Euro efficiency in % | 98 |
| Product Data Display | TFT LCD 5,7” |
| Product Data Transformer | no |
| Product Data Height (mm) | 2920 |
| Product Data Interfaces | wired monitoring: PVI-USB-RS232_485 (opt.) Remote monitoring: PVI-AEC-EVO (opt.), VSN700 Data Logger (opt.) |
| Product Data Length (mm) | 1520 |
| Product Data Maximum input current (A) | 2776 |
| Product Data Nominal AC power (W) | 1560000 |
| Product Data Amount DC inputs | 20 |
| Product Data Amount MPP Tracker | 4 |
| Product Data Protection class (EU) | IP 65 |
| Product Data DC voltage range (V) from | 585 |
| Product Data DC voltage range (V) until | 850 |
| Product Data Weight (kg net) | 4600 |
| Product Data Width (mm) | 4420 |
| Product Data C ° working temperature range from | -20 |
| Product Data C ° working temperature range until | 60 |
