STP-8000TL-20
SMA SUNNY TRIPOWER STP-8000TL-20

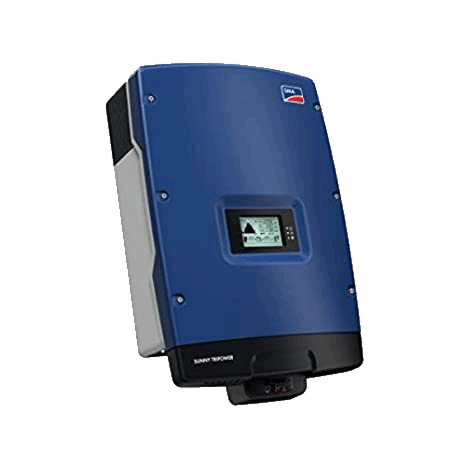

Similar to illustration or symbol photo
BVS Electronics: Certified Quality
Repairs in accordance with Machinery Directive 2006/42/EC
More BVS Advantages
You benefit from:
- BVS REPAIR / PRODUCT OVERHAUL • Comprehensive product-repair overhauls • Repairs and replacements for discontinued assemblies • Preventive replacement of all components identified as weak points or wear parts • Optional expedited repairs • Preventive overhaul packages (ECOFIT) • Cleaning and washing of each assembly before repair • Functional and stress tests • Use of components approved by the manufacturer/legislator
- BVS SERVICE • 24/7 hotline • Long-term supply analyses and concepts • Very attractive price levels • Free shipping up to 30 kg • Free technical hotline • On-site service and configuration
- BVS AVAILABILITY • Over 1,000,000 assemblies available 24/7 • 24/7 courier service • Multiple shipping options • Own HMI / IPC • Express air freight
- BVS QUALITY • 24 months warranty* • Extensive technical expertise and state-of-the-art diagnostic systems • Comprehensive documentation">All advantages in the tooltip when you hover your mouse over here.
Your BVS Electronics Advantages
No longer needed assemblies? We turn them into cash!
We purchase across manufacturers – whether defective or fully functional. Fast, straightforward, and at fair prices.
Request a quote now!
📞 Phone: +49 6181 95404-207
✉️ Email: ankauf@bvs-electronics.com
SMA SUNNY TRIPOWER STP-8000TL-20 string inverter
The three-phase SMA SUNNY TRIPOWER inverters are designed, not only for your own home, but are also ideally suited for system construction from the classic house roof system to the higher performance range: Because the SMA SUNNY TRIPOWER product range covers a wide range with the portfolio extensions through the new 10 kVA and 12 kVA versions Application range from: Users benefit from numerous tried and tested product features: Highly flexible thanks to the tried and tested Optiflex technology and the asymmetrical multistring, it ensures maximum efficiency with OptiTrac Global Peak for maximum yields. In addition to SMA and SunSpec Modbus communication, the direct connection to Sunny Portal through SMA Webconnect is included as standard. Integrated network management functions, reactive power feed-in and suitability for operation with a 30 mA RCD are also standard. Conclusion: When it comes to system construction in the power classes from 5 kW to 12 kW, the SMA SUNNY TRIPOWER is the optimal product solution - from home use to larger rooftop systems to the implementation of smaller solar parks.
| Product Data AC Connection | Spring clamp |
|---|---|
| Product Data DC Connection | SUNCLIX |
| Product Data Euro efficiency in % | 97 |
| Product Data Display | Graphic display |
| Product Data Transformer | no |
| Product Data Height (mm) | 730 |
| Product Data Interfaces | Modbus, Speedwire/Webconnect |
| Product Data Length (mm) | 240 |
| Product Data Maximum input current (A) | 15 |
| Product Data Nominal AC power (W) | 8000 |
| Product Data Amount DC inputs | 2 |
| Product Data Amount MPP Tracker | 2 |
| Product Data Amount phases | 3 |
| Product Data Protection class (EU) | IP65 |
| Product Data DC voltage range (V) from | 150 |
| Product Data DC voltage range (V) until | 1000 |
| Product Data Standard manufacturer warranty (years (opt)) | 5 |
| Product Data Weight (kg net) | 37 |
| Product Data Width (mm) | 470 |
| Product Data C ° working temperature range from | -25 |
| Product Data C ° working temperature range until | 60 |
* 24-month warranty on new parts, product-overhauling repairs and product-overhauled spare and replacement parts. We not only carry out our preventive measures for product-overhauling repairs, exchange and spare parts sales, but also extensively test each electronic assembly for function and load. In addition, we use original and safety-compliant components and thus guarantee the safety of the modules used in accordance with the standards of the Machinery Directive 2006/42 / EC.
** There is no guarantee for our "Cleaning & Inspection" service type.
Reliable inverters are worth their weight in gold!
Discover how much money you're losing due to downtime – with our inverter loss calculator.
Inverter failure doesn't just mean technical problems – it means cash slipping through your fingers. These losses can be substantial and depend on many factors: your feed-in tariff, the capacity of your inverter, and the valuable production hours you lose during downtime.
